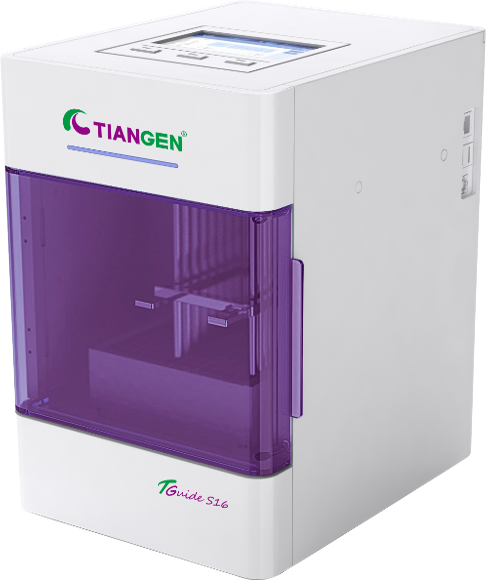

TGuide S16 Nucleic Acid Extractor OSE-S16-AM
Description
Product Introduction
TGuide S16 Nucleic Acid Extractor can process up to 16 samples simultaneously by the magnetic rods to bind and transfer the magnetic beads, the 96-well plate or single-sample reagent cartridge and magnetic tip comb. By using the corresponding nucleic acid extraction reagent, this product can automatically purify DNA/RNA from various samples of animal, plant, bacteria, fungi, etc., and extract DNA from plasmid, agarose gel and PCR product.
Features
Super easy to use
No extra pipetting work. The elution volume can be adjusted as required.
The installation and operation require little training. With pre-installed programs, unpack the cartridge, select the protocol and run your experiment. Programs are ready-to-use, and also customizable.
New binding mode
Optimal design of heating tank
There is a column inserted between the lysis buffer and the eluent column, which effectively prevents the eluent from evaporating due to the lysis column heating. Therefore, the recovery volume of the nucleic acid solution is more accurate.
Contamination control and operator protection
It can be placed on a clean bench or in the chemical hood.
The instrument is running in an automatic and closed way.
The contamination control system adopts two mechanisms: the internal cross-contamination control system and ultraviolet sterilization system, to extensively avoid cross-contamination between columns and samples.
Preloaded reagents and matched disposable consumables.
The chemical handling is eliminated to the greatest extent to ensure the operation safety.
Reagent Selection Guide for TGuide S16
Genomic DNA extraction of wheat roots
Sample size: 100 mg
Sample pre-treatment: grinding with liquid nitrogen or tissue grinding homogenizer
Agarose gel concentration :1%(TAE)
Loading volume: 2 μl
Marker: D15000, TIANGEN
A Company: a well-known brand
Experiment result: using TGuide S16 with reagent TGuide Smart Magnetic Plant DNA Kit (4993548) to automatically extract the genomic DNA of wheat roots has achieved good yield and high purity, which is equivalent to the extraction yield and purity of well-known competor. Moreover, the integrity of genomic DNA is better than that of the competing products of other companies. In this experiment, about 15 μg of nucleic acid was extracted from 100 mg wheat roots, with OD260/OD280 around 1.8~1.9, and OD260/OD230＞2.0.
