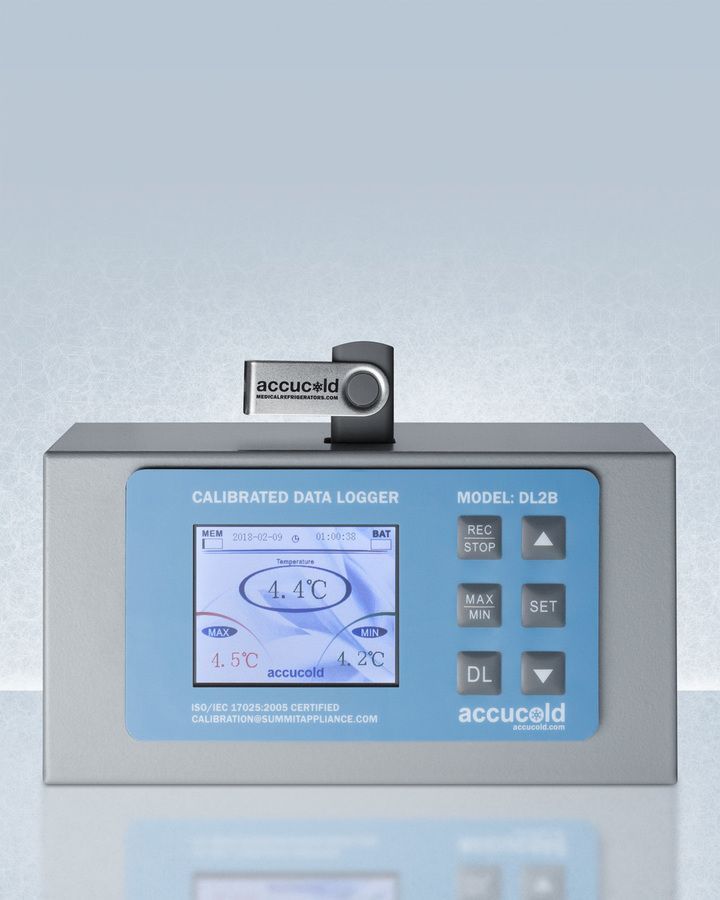

Digital Data Recording Device for Freezer & Refrigerator, Capacity: 32,000 data groups, DDR2BK

Description

FEATURES: Easy analysisSimply plug the flash drive into a PC or Mac and graph or chart in Microsoft Excel or .CSV compatible program

Temperature alarmAudible alarm will sound and indicator light will flash if temperature rises or falls below the specified approved range

Alarm hysteresisProgrammable tolerance band helps to prevent alarm chattering

Alarm delayAllows you to delay alarm activation by a user-set time interval to avoid unnecessary alerts

Easy-to-view displayScreen is positioned at a slight angle for easier readability

Internal memoryLogger can hold up to 32,000 data groups for long-term recordkeeping

Memory display and alarmScreen includes a display icon for the available memory, with an audible/visual alarm alerting when the unit falls to 10%

User-set logging intervalUsers can program the timing interval for data logging, with a wide range of anywhere between 10 seconds and 240 minutes

Reliable loggingAccurate logging with a measurement uncertainty of ± 0.09°C

Large simultaneous temperature displayLED illuminated LCD screen keeps the current, minimum, and maximum temperatures in view at all times, with a readout in Celsius or Fahrenheit to the nearest tenth of a degree

USB flash drive included4GB flash drive included for increased memory and easy data transfer to a computer

Protected temperature sensorTemperature sensor is enclosed inside glycol-filled bottle to protect it from being affected by rapid temperature changes that may occur when the unit’s door is opened

NIST calibrated digital data logger Unit is calibrated to NIST standards in our ISO/IEC 17025:2017 accredited laboratory and ships with a certificate

Password protectionEasy programming to set a password, ensuring only authorized staff can adjust the settings

Compatible on any model of Freezer & RefrigeratorCan be installed on refrigerators and freezers, including chest, front-opening, drawer, compact, reach-in, and built-in undercounter units; for this data logger factory installed on your unit, order DL2B

12VDC power adapterAdapter included

Backup batteryIncludes rechargeable Li-ion battery that will record for up to 8 hours in the event of power failure

Low battery alertBattery symbol flashes on the LCD screen when battery needs recharging

Start delay functionUser-adjustable setting allows you to set a delay for when to start recording temperature

Programmable time and dateEasy to set before using the device

Optional programming availableLogger’s parameters can be pre-programmed in our ISO/IEC certified laboratory at no extra charge upon order; contact our product specialists at 718-893-3900 ext. 805 for more information

Durable constructionLogger is installed inside steel housing to ensure strong protection for all electrical components

Easy installationVelcro strips included to help position and stabilize the logger on any surface

Dimensions

3.5″ H x 7.25″ W x 3.25″ D

Warranty: 1 Year

DESCRIPTIONS: NOTE: The device is for aftermarket installation. It ships in a single box with the following items included: a 4GB USB flash drive, a power adapter, a rechargeable battery, an external temperature sensor encased in a bottle filled with glycol, and a NIST certified calibration certificate. If you want this data logger pre-installed on a refrigerator & , order it as pre-installation option with your unit. Contact your sales representative for details and pricing on pre-installation. This device brings true convenience and trusted reliability to temperature logging. With a NIST calibrated probe and large display, this data logger offers all the features needed for accurate and convenient temperature monitoring. Designed for use with virtually any refrigerator or freezer, it lets you set your own recording intervals (anywhere between 10 seconds to 240 minutes) for logging that meets your specific needs. The digital data logger can store up to 32,000 groups of data through its internal memory, or up to 4GB using the included USB flash drive. When you’re ready to review the temperature data, simply plug the flash drive into your PC or Mac and transfer the data using Microsoft Excel or any .CSV compatible program. The unit is also compatible with a USB 3.0 extension cable for easy data transfer. It offers accurate logging with a measurement uncertainty of ±0.09ºC, conforming to the CDC’s guidelines for calibration. The LED illuminated LCD screen features a large simultaneous readout of the current, minimum, and maximum temperature to the nearest tenth of a degree, as recommended by the CDC for vaccine storage. The default readout is set to display in Celsius, but can be switched to Fahrenheit in just a few steps. A high/low temperature alarm sounds and flashes when the temperature rises above or falls below the user-set range. It is powered by a 12V DC power adapter included with your unit. A rechargeable lithium battery is also included to allow you to record up to 8 hours of data in the event of a power failure. The temperature sensor is enclosed in a glycol-filled bottle to protect it from rapid changes when the door is opened, better simulating the temperature of stored contents instead of air temperature. This item is NIST calibrated in ISO/IEC 17025:2017 accredited laboratory and ships with a calibration certificate for your records. For added security, it is password protected to ensure only authorized staff can adjust the logger’s settings. It comes in a durable steel housing. The screen is set at a slight angle, making it easy to view the temperature at a glance. It is designed to measure a temperature range of -45º to +120ºC (-49º to +248ºF). With its flexible programming capabilities and user-friendly interface, it creates an easy and reliable solution to temperature logging. By providing a detailed and accurate temperature record, this DDL meets CDC and VFC recommendations for logging and monitoring vaccine storage.
